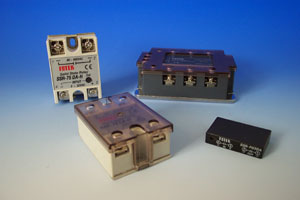

Product Name
Connector the Mechinery
Introduction
Type
Terminal Type

Model
SSR-10DA
SSR-25DA
SSR-40DA

Rated Load Current
10A
25A
40A

Input Data

Operating Voltage
3~32VDC

Min. ON/OFF Voltage
ON>2.4V , OFF<1.0V

Trigger Current
7.5mA / 12V

Control Method
Zero Cross Trigger

Output Data

Operating Voltage
24~380VAC

Min. Back Voltage
600 VAC (Repetive)

Voltage Drop
1.6V / 25°C

Max. Durated Current
135A
275A
410A

Leakage Current
3.0mA
3.0mA
3.0mA

Response Time
ON<10ms , OFF<10ms

General Data

Dielectric Strength
Over 2.5KVAC / 1min.

Isolation Strength
Over 50MΩ / 500VDC

Operating Temperature
-20°C ~ +80°C

Housing Material
Intensive ABS

Weight
Appr. 105g

Specification
3~32VDC
Certification
UL, CE
