Use for Mechinery

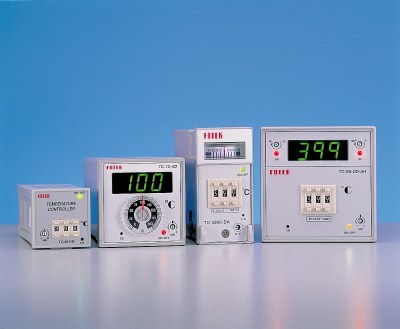

Model TC48-AN-□-□ TC48-DN-□-□ TC48-DD-□-□ TC48-DD-□-□-AH
Alarm Non Non Non AL+HB
Display Method Non Non 0.36" 7-Segment Red Led
Tolerance Non Non 0.5% of F.S.
Range Non Non -99 ~ +99 , 0 ~ 999
Setting Method Trimmer Digital Switch
Tolerance 1.0% 0.5% of Setting Range
Range 100,200,400 -99 ~ +99 , 0 ~ 199 , 0 ~ 399 , 0 ~ 599 , 0 ~ 999
General Data
Sensor Type K(CA) , J(IC) or PT-100Ω
Output Method Relay(5A/250VAC) , Voltage(20mA/12V) , Linear(4~20mA)
Control Method P+D ON/OFF , ON/OFF or Proportion
Proportion Band Appro 2.5% of F.S
Cycle Time 2 Sec or 20Sec (ON+OFF)
Manual Reset Trimmer: Range±10°C
Unit of Degree °C or °F
AL Alarm
Setting Method Trimmer(AL)
Setting Range 0 ~ +50° , 0 ~ -50° or -50° ~ +50° of Setting Value
Output Method Relay , 0.5A/250VAC
HB Alarm
Setting Method Trimmer(HB)
Setting Range 0.5A~25A ; 1.0A~50A
Output Method Relay , 0.5A/250VAC
Electrical Data
Power Supply 110 / 220VAC ±20% 50/60Hz
Current Consumption 2.5VA max.
Insulation Resistance Over 50MΩ/500VDC Between Power And Another Terminal
Dielectrical Strength Over 2.5KV /1min Between Power And Another Terminal
Mechanical Data
Operation Temp./Hum -20°C ~ +60°C ; 35%~85% RH
Vibration Resistance 10 ~ 55Hz / 1.5mm , 2Hrs in X.Y.Z Direction
Panel Thickness 1.0 ~ 8.0mm

110 / 220VAC ±20% 50/60Hz

CE
